MARKA: TRUETEC

ACENTE: CHZ MAKİNE

ÖZELLİKLER;

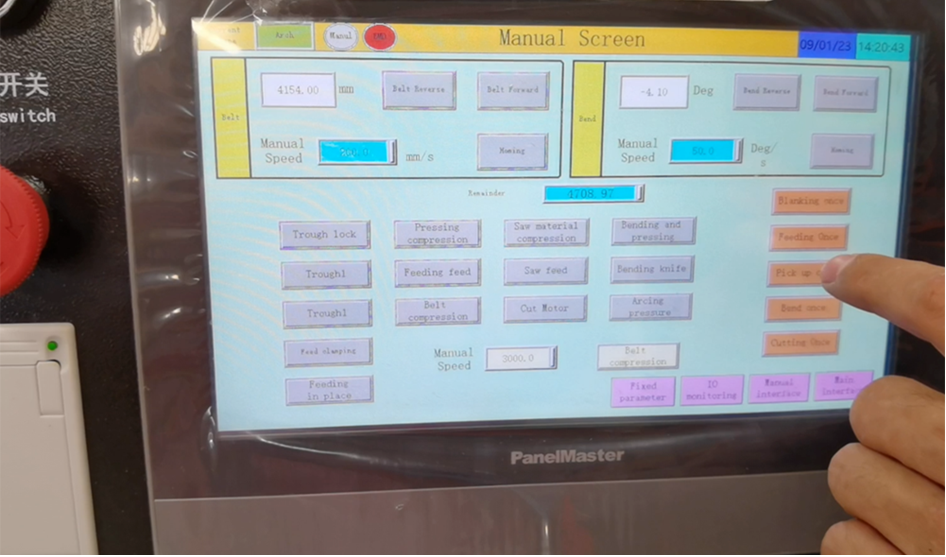

1.PLC control, touch screen simple operation.

2.Feeding system adopts CNC servo motor, bending angle uses CNC control system.

3.Four material storage slots for four different specifications of spacers.

4.Bending and cutting automatically avoid the connection,the roundness,automatically cut after bending.

5.With manual operation model, easy to debug and repair.

6.It can make triangle, rectangle, positive five Squareness,positive hexagon, roundness shape and so on.

7.The machine is equipped with a label printing device to print processing information online in real time

.



Model

JYZ-03

Input power

380V

Total power

4Kw

Aluminum bar specification

5.5-26.5mm

Aluminum thickness

6.5mm

Air pressure

0.5~0.8MPa

Max.bending size

2000*2000mm

Min.bending size

300*300mm

Overall dimension

10000*2200*2600mm

Weight

1500Kg

PLC

Siemens

Cylinder

AirTAC

Motor

FUJI or ABB

Belt

Lileno

Synchronous wheel

Lileno

Touchscreen

Schneider

Server Driver

FUJI or ABB

Sensor

(Autonics) or (OMRON)

Power supply

Mingwei

Contactor (24V)

ABB

Bearings (key parts)

NSK or TBR


Ürün Resimleri

Ürün PDF

Ürün Video

Sipariş Ver
