MARKA: TRUETEC

ACENTE: CHZ MAKİNE

Characteristics:

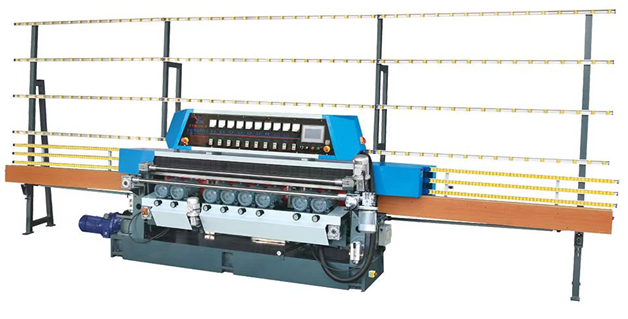

• This is 9 motors glass beveling machine with PLC control mode, it can complete rough grinding and fine grinding in one time, the polished effect is similar to a mirror surface, with accurate ground angles.
• It uses PLC control, and also you can control it by automatic or manual.
• The man-machine interface can clearly shows the glass tbickness,bevel width、angle and other parameter,the transfer speed is uesd by frequency adjustment.
• The chain-plate is used by thickening of steel plate, and the guide is made by special craft, it have much durable, not easily deformed, transfer stable and so on characteristics.
• Casting sturdy body, high-precision, low-power motor, the glass surface is similar to the mirror surface after finishing grinding, it is suitable for high-volume glass grinding.
• The front pressure plate has a small pressure block structure. When processing mosaic glass in batches, the loss of the splint does not need to replace the entire pressure plate, reducing the use cost.(Small size)

• Technical Parameter:

  Model	Min glass size	Width	Degree	Speed	Thickness	Power	Weight	Dimensions
  ZXM261S	25*25mm	0-18mm	3-30°	0.5-4.5m/min	3-19mm	21kw	4000kg	6.8×1.2×2.5m
